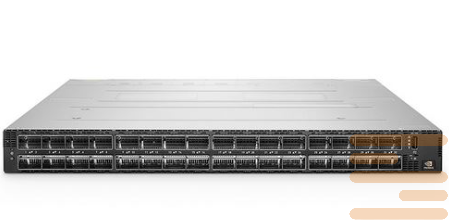

Switch NVIDIA Quantum InfiniBand MQM9790-NS2R
SKU
MQM9790-NS2R
EAN:
18937
Condition:
new
Stock:
available on order
Lead time:
25-35 days
NVIDIA Quantum-2-based 400Gb/s InfiniBand switch, 64 400Gb/s ports, 32 OSFP ports, non-blocking switching capacity of 51.2Tb/s, two power supplies (AC), standard depth, unmanaged, connector-to- power (C2P) airflow, rail kit
Category: Nvidia Switch
Modern tasks in the field of highly productive calculations (HPC) and artificial intelligence (AI) Require exceptional data rate and reliability of network equipment. Series switches NVIDIA Quantum-2 QM9700 provide 400 GbIT/s on each port, forming the basis for ultra-modern data centers and computing systems that scale.
Key features NVIDIA Quantum-2 QM9700:
Maximum productivity is 64 ports on 400 GbIT/with InfiniBand, providing total bandwidth 51,2 TbIT/with.
Innovative technologies - support RDMA, adaptive routing and protocol NVIDIA SHARPv3 For accelerated data aggregation.
Minimal delay - low -time reviews of critical important computing processes.
Scalability - integration with different topologies (Fat Tree, SlimFly, DragonFly+ and others.), as well as complete compatibility with previous generations NVIDIA InfiniBand.
Intellectual traffic management - adaptive algorithms for balancing load, advanced network load mechanisms and automatic recovery in failure.
These switches provide 32-fold acceleration of AI comparison compared to previous models, reducing the load on the network and increasing the efficiency of processing large data arrays. NVIDIA Quantum-2 QM9700 – Choice for specialists who create the solutions of the future in the field of supercomputers, machine learning and research.
Specifications of the switch NVIDIA Quantum InfiniBand MQM9790-NS2R:
Key features NVIDIA Quantum-2 QM9700:
Maximum productivity is 64 ports on 400 GbIT/with InfiniBand, providing total bandwidth 51,2 TbIT/with.
Innovative technologies - support RDMA, adaptive routing and protocol NVIDIA SHARPv3 For accelerated data aggregation.
Minimal delay - low -time reviews of critical important computing processes.
Scalability - integration with different topologies (Fat Tree, SlimFly, DragonFly+ and others.), as well as complete compatibility with previous generations NVIDIA InfiniBand.
Intellectual traffic management - adaptive algorithms for balancing load, advanced network load mechanisms and automatic recovery in failure.
These switches provide 32-fold acceleration of AI comparison compared to previous models, reducing the load on the network and increasing the efficiency of processing large data arrays. NVIDIA Quantum-2 QM9700 – Choice for specialists who create the solutions of the future in the field of supercomputers, machine learning and research.
Specifications of the switch NVIDIA Quantum InfiniBand MQM9790-NS2R:
| Parameter | Description |
|---|---|
| Model | NVIDIA Quantum InfiniBand MQM9790-NS2R |
| Switch Type | High-performance InfiniBand Quantum Switch |
| Switch ASIC | NVIDIA Quantum |
| Ports | 40 × QSFP56 (HDR) |
| Port Speed Support | Up to 200Gb/s per port (HDR InfiniBand) |
| Total Throughput | 16 Tbps (bidirectional aggregate bandwidth) |
| Packets per Second (PPS) | Up to 11.6 billion packets per second |
| Latency | Sub-90 nanoseconds |
| Switching Capacity | 16 Tbps (full-duplex) |
| Form Factor | 1U rack-mount |
| Power Supply | Dual redundant, hot-swappable (AC) |
| Cooling | Hot-swappable fans, front-to-back or back-to-front airflow |
| Management Interfaces | 1 × RJ-45 Ethernet, 1 × USB, 1 × RS232 serial console |
| Management Software | NVIDIA UFM (Unified Fabric Manager), MLNX-OS |
| Supported Protocols | HDR InfiniBand, Adaptive Routing, Congestion Control, Quality of Service (QoS) |
| Monitoring & Telemetry | Real-time network telemetry, In-band network telemetry (IBNT), performance counters |
| Security Features | Secure boot, role-based access control (RBAC), access control lists (ACLs) |
| Dimensions (W × H × D) | 440 × 43.6 × 800 mm (17.3 × 1.72 × 31.5 inches) |
| Weight | Approx. 15 kg (33 lbs) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Compliance | RoHS, CE, FCC, UL, NEBS Level 3 |
| Ideal Use Cases | HPC clusters, AI workloads, large-scale simulation and modeling, data-intensive applications |
| condition | new |
|---|
