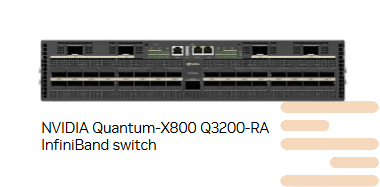

Switch NVIDIA Quantum-X800 InfiniBand Q3200-RA

High -performance switches NVIDIA Quantum-X800 InfiniBand is an advanced solution for building modern computing infrastructures. Thanks to support for bandwidth up to 800 GbIT/s and minimal delays, these devices provide high data transfer rates, which is critical for performing tasks related to artificial intelligence (II), highly productive calculations (HPC) and processing data on the scale of hyper -convertible data centers (Data Center).

Advantages NVIDIA Quantum-X800 InfiniBand:

1. Maximum scalability for II

Switches Quantum-X800 allow you to double the speed of connections and increase the scale of the network infrastructure by 5 times. The use of a two-level Fat-TREE topology allows you to connect over 10,000 knots by means of 800 GbIT/s, creating ideal conditions for building highly loaded computing clusters.

2. Innovative technology In-Network Computing

Thanks to the protocol NVIDIA SHARP (Scalable Hierarchical Aggregation and Reduction Protocol) fourth generation, switches Quantum-X800 efficiently unload computing tasks by increasing total productivity up to 9 times. Support for the FP8 format and new collective operations such as ReduceScatter and ScatterGather, makes these devices indispensable in modern computing environments.

3. Optimization of bandwidth and load isolation

The technology of adaptive routing and intellectual load management in real time provides stable operation of the network even with high loading. This guarantees virtually ideal efficiency and protection against reducing productivity under conditions designed for many users or multitasking environments.

4. Increased energy efficiency and failure resistance

Use of technology Quantum-X Photonics CPO (Co-Packaged Optics) significantly reduces energy consumption, minimizes delays and reduces the total cost of ownership (TCO). Thanks to the integrated optical architecture, the need for modular transceivers, which increases reliability and simplifies equipment maintenance.

5. Extended management capabilities

Switches Quantum-X800 operates on the basis of a software platform NVIDIA Networking OS (NVOS), which provides powerful tools for network configuration and monitoring. NVOS Supports command interface (CLI), REST API, SNMP, as well as gRPC Network Management Interface (gNMI), which provides flexibility in management and automation.
Thanks to advanced technologies and a unique combination of performance, reliability and energy efficiency switches NVIDIA Quantum-X800 InfiniBand will become a key element of modern high -performance computing infrastructure.

Specifications of the switch NVIDIA Quantum-X800 InfiniBand Q3200-RA:

Feature	Description
Product Name	NVIDIA Quantum-X800 InfiniBand Switch Q3200-RA
Part Number	Q3200-RA
Switch ASIC	NVIDIA Quantum-X800™
Switch Type	Fixed, Managed InfiniBand NDR (Next Data Rate) Switch
Ports	64 × OSFP ports
Port Speed	Up to 400 Gb/s per port (InfiniBand NDR)
Total Switch Bandwidth	51.2 Tb/s
Max Message Rate	Up to 3.2 billion messages per second
Latency	Extremely low latency (<100 ns typical)
Airflow Direction	Rear-to-front airflow (indicated by “RA”)
Cooling System	Redundant, hot-swappable fan modules
Power Supply Units (PSUs)	2 × Hot-swappable redundant PSUs
Power Consumption	~4,000–4,800W typical
Form Factor	2U rack-mountable chassis
Dimensions (H x W x D)	Approx. 8.8 × 43.8 × 80.0 cm (3.5 × 17.2 × 31.5 in)
Weight	~25–30 kg (55–66 lbs), depending on configuration
Management Interfaces	1 × 1GbE RJ45 (OOB), 1 × Serial Console (RS232), 1 × USB
Software Support	NVIDIA MLNX-OS®, NVIDIA UFM®, SDK tools, Redfish API
Monitoring & Telemetry	In-band telemetry, congestion tracking, real-time adaptive routing
Advanced Features	Adaptive Routing, QoS, Congestion Control, Subnet Manager (SM), Fairness Engine
Supported Protocols	InfiniBand NDR, RoCE v2 (via gateway), LID Routing
Certifications & Compliance	CE, FCC, UL, VCCI, RoHS, REACH
Use Cases	AI Factories, Supercomputers, HPC Clusters, Exascale Infrastructure
