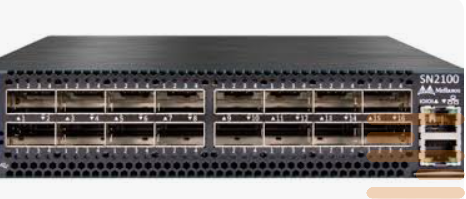

Switch NVIDIA Spectrum SN2100

A series of switches NVIDIA Spectrum™ SN2000 – It is a modern second -generation switching equipment designed specifically for highly executed networks. These switches are ideal for Leaf, Spine and Super-Spine architecture, providing a reliable and flexible network connection.
One of the key features of the series SN2000 There is a wide range of ports supported, — from 1 GbIT/with up to 100 GbIT/with. This allows you to organize full switching servers inside the rack at speeds of 1, 20, 25, 40, 50 and 100 GbIT/s, and also flexibly configure uplink ports for the optimal ratio of bandwidth and network fault tolerance.
Data switches are ideal for building scaled, highly productive L2/L3-networks, cloud infrastructures and solutions based on software-determined networks (SDN). Their architecture allows you to achieve minimal delay in transmission of data that is critical for cloud computing, hyper -convergent storage and analysis of large data.
Open network Ethernet: freedom of choice
Open Ethernet technology implemented in SN2000, destroys the traditional limitations of closed network solutions, freeing users from rigid binding to a single vendor. This allows you to install different operating systems on top of switches and optimize the network depending on individual needs.

Advantages SN2000:

• Configuration's flexibility - maintaining different port speeds, the ability to choose blocking coefficients.
• High performance - transmission of full speed with minimal delays.
• Open Ecosystem - Open Ethernet Support to Select Software Solution.
• Economic Efficiency - Reduced Cost by Optimal Use of Network Equipment.

Switches NVIDIA Spectrum SN2000 – This is the best solution for modern dates centers that are important flexibility, performance and independence from vendors.

Specifications of the switch NVIDIA Spectrum SN2100:

Parameter	Description
Model	NVIDIA Spectrum SN2100
Switch Type	High-Density 100GbE Half-Width Data Center Switch
Switch ASIC	NVIDIA Spectrum-2
Ports	16 × 100GbE QSFP28
Port Speed Support	10/25/40/50/100GbE (via breakout and configuration)
Total Throughput	3.2 Tbps (bidirectional)
Packets per Second (PPS)	Up to 4.76 billion packets per second
Latency	As low as 300ns
Buffer Size	64 MB
Form Factor	1U half-width rack-mount (can be paired side-by-side)
Switching Capacity	3.2 Tbps
Power Supply	Dual redundant, hot-swappable AC or DC PSUs
Cooling	Hot-swappable fans, front-to-back or back-to-front airflow
Operating System	NVIDIA Cumulus Linux, NVIDIA Onyx, or SONiC
Management Interfaces	1 × RJ-45 console, 1 × USB, 1 × out-of-band Ethernet port
Redundancy	Hot-swappable power supplies and fans
Telemetry & Monitoring	Real-time telemetry, streaming analytics, In-band Network Telemetry (INT)
RoCE Support	RoCE v1/v2, with ECN and PFC support
Security Features	Secure boot, MACsec, ACLs, RBAC, encrypted management
Dimension (W × H × D)	217 × 43.6 × 600 mm (8.54 × 1.72 × 23.6 inches)
Weight	Approx. 6.3 kg (13.9 lbs)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Compliance	RoHS, CE, FCC, UL, NEBS Level 3, and more
