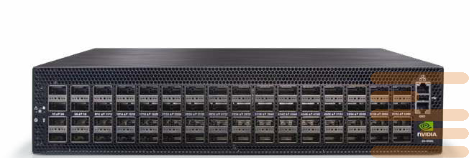

Switch NVIDIA Spectrum SN4600C
64 QSFP28 100GbE Frequency: 50–60Hz Input range: 100–264Vac
Ethernet-competent series NVIDIA Spectrum SN4000 is the advanced generation of network equipment designed for high -performance data centers. These devices are designed to construct scaled and flexible networks with Leaf-Spine and Super-Spine architecture, providing a secure connection of servers and network components at 1 to 1 to 1 to 400 GbIT/with. The high density of the port provides connection of the entire server cabinet at any speed, and the capabilities of applins allow you to adjust the lock coefficients depending on the requirements of specific tasks.
High performance and intellectual traffic management
Series switches SN4000 Provide full bandwidth work by minimizing data delays and maintaining the modern functionality of software-defined networks (SDN). Thanks to these characteristics, the device is ideal for cloud platforms, hyperconvertent storage systems and large data analysis. Architecture of the line SN4000 based on a special integrated scheme Spectrum-3 (ASIC), which provides bidirectional switching capacity up to 12,8 TbIT/with.
Open architecture NVIDIA Open Ethernet
NVIDIA OPEN Ethernet technology breaks traditional restrictions except binding to a single software supplier. This allows users to use different operating systems on top of Ethernet commuters, providing more control over infrastructure. This approach increases the efficiency, flexibility of management and profitability of the network. Support for standard open solutions for servers and storage systems makes these switches easily integrated into modern IT ecosystems.
Optimal solution for new generation networks
Series switches SN4000 available in different configurations that allows you to choose the appropriate model for top-run-run (ToR) and main switches (spine). All devices support full speed without compromising packages, have a minimal delay in switching (cut-through mode) and equipped 64 Mb buffer memory on the crystal for effective transmission of traffic. Their extended opportunities in the field of telemetry, programming and tunneling make a series SN4000 Ideal for Complex Tasks Modern Date Centers.
Specifications of the switch NVIDIA Spectrum SN4600C:
| Feature | Specification |
|---|---|
| Model | NVIDIA Spectrum SN4600C |
| Switch Type | Data Center Ethernet Switch |
| Form Factor | 1RU Rackmount |
| Ports | 32 x 25GbE Ports |
| Ethernet Standards | IEEE 802.3 (Ethernet), IEEE 802.3ad (Link Aggregation), IEEE 802.1Q (VLAN) |
| Throughput | Up to 3.2 Tbps (Total Bandwidth) |
| Forwarding Rate | 2.4 Bpps (Billion Packets Per Second) |
| Switching Fabric | Non-blocking, Full Mesh |
| Latency | < 1.0 μs for L2 Switching (typical) |
| MAC Addresses | 128K MAC Addresses (default) |
| Jumbo Frame Support | Up to 9,000 bytes |
| Power Consumption | 150W - 250W (depends on configuration) |
| Cooling | Dual Hot-Swappable Fans |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Management | NVIDIA Spectrum NMS, SNMP v1/v2/v3, CLI, REST API |
| Redundancy Features | Hot-swap power supplies, fans, and modules |
| Security | IEEE 802.1X, ACLs, MACsec, Role-based Access Control (RBAC) |
| Operating System | NVIDIA Spectrum Operating System (NOS) |
| Virtualization | VXLAN, EVPN, Segment Routing, NVGRE |
| Certifications | RoHS, CE, UL, FCC |
| condition | new |
|---|
