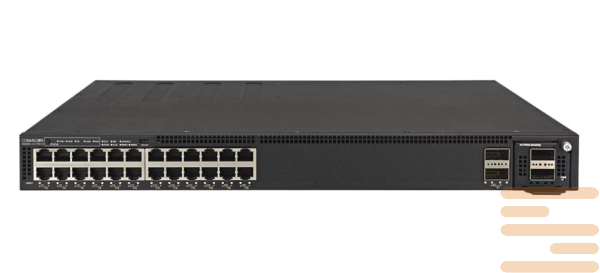

Switch Ruckus ICX7550-24-E2
24-port 10/100/1000 Mbps, 2x 40Gbps QSFP+ dual-mode uplink/stacking ports, modular slot. Bundle includes 2x 400W AC power supplies and 3x fans, front to back airflow, port modules sold separately.
Switches RUCKUS® ICX 7550 – This is corporate class equipment designed to build reliable and scaled networks with high capacity. This series combines data center–level performance with ease of operation in infrastructures of enterprises of all sizes.
Devices support data rates up to 100 GbIT/s and are equipped with ports 1/10/25/40/100 GbIT/s, that allows you to effectively work with modern applications and growing traffic. Thanks to the stacking architecture, up to twelve switches can be combined into a single system, which provides flexibility when expanding the network and increases its resilience to failures.
Support for L2 and L3 protocols, including OSPF, BGP and Multicast, makes the equipment universal for solving routing and segmented network organization tasks. An important feature is the use of POE, POE+and POE ++ technologies that allows you to connect and nourish access points Wi-Fi sixth generation, IP cameras and other devices without additional power sources.
Special attention is paid to security: implemented support for access control lists, traffic segmentation and attack protection mechanisms.
RUCKUS® ICX 7550 differs energy efficiency and certified according to international reliability standards.
These switches are suitable for educational institutions, medical organizations, office complexes and facilities with increased requirements for work stability. Thanks to the combination high performance, flexibility and ease of management, this line is the optimal solution for long-term use in modern corporate networks.
Specifications of the switch Ruckus ICX7550-24-E2:
| Specification | Details |
|---|---|
| Product Name | Ruckus ICX7550-24-E2 |
| Device type | Stackable Managed Ethernet Switch |
| Form factor | 1U Rack-mountable |
| Ports (RJ-45) | 24 × 10/100/1000 Mbps |
| Uplink / Stacking Ports | 2 × 40 Gbps QSFP+ (used for uplink or stacking) |
| Maximum switches per stack | 12 |
| Switching capacity (full duplex) | — (not explicitly published for exactly this variant) |
| Layer support | L2 / L3 (static routing, RIP, OSPF, BGP) |
| IPv4 / IPv6 support | Yes |
| VRF | Yes |
| MACsec | Yes |
| Hot-swappable components | Power supplies, fans |
| Power supply redundancy | Supported |
| Airflow direction | Reversible (front-to-back or back-to-front) |
| Management ports | 1 × out-of-band RJ-45, USB Type-C console port, RJ-45 serial console, USB port for file storage |
| PoE support | None (for base ICX7550-24) |
| Regulatory / compliance | RoHS, UK-RoHS, others as per Ruckus standards |
| Software / protocols | VLAN, STP, MLAG, sFlow, VRRP, PIM, PBR, etc. |
| Warranty | As per CommScope / Ruckus standard product warranty |
| condition | new |
|---|
