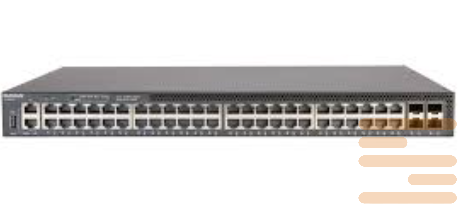

Switch Ruckus ICX8200-48PF2-E2
RUCKUS ICX 8200 Switch, 48×10/100/1000 Mbps PoE+ ports, 4×25 GbE SFP28 stacking/uplink-ports, 1440 W PoE budget, hot swap power supplies and fans, two power supplies and two fans included, three-year remote TAC support. Power cords not included.
Series switches RUCKUS® ICX 8200 is a modern solution for building scaled and high -performance networks of both corporate and operator level. These devices are designed to take into account the requirements for high capacity, reliability and long-term operation, which makes them optimal for the Date Centers, Camps and Large Office Complexes. Series models ICX 8200 Supports full control via network layer protocols L2/L3, provide stable connection even with intensive traffic and complex network topology.
Technically switches ICX 8200 built on high-performance ASIC-on chips that ensure low data transfer latency and simultaneous operation with a large number of connected devices. They maintain port speeds up to 10GBE and 25GBE, as well as the possibility of aggregation of channels increasing the capacity. Particular attention is paid to reserving power and cooling: built -in hot replacement power supplies and intellectual fans guarantee stable work even with increased load.
Switches RUCKUS ICX 8200 provide advanced routing capabilities, including static and dynamic routing, support of protocols OSPF, RIP, VRRP and BGP that allows you to integrate them into existing networks without loss of performance. Certified equipment is fully compatible with modern network control systems, including automation and monitoring capabilities that makes a network maintenance more >Auded and simple.
In terms of security, ICX 8200 offers extensive access control functions, including 802.1X, VLAN, ACL and protection against attacks at network level. This allows not only segment of traffic, but also protect critically important data from unauthorized access. Equipment management can be carried out both through a web interface and through a command line that provides flexibility of setting up both experienced administrators, so less prepared users.
Series ICX 8200 It also supports technologies PoE (Power over Ethernet), which allows powering connected devices directly through the network cable, saving on additional power sources. Switches are designed to work in continuous mode 24/7 with minimal service requirements, which is especially important for organizations with high requirements for uninterrupted network operation.
Specifications of the switch Ruckus ICX8200-48PF2-E2:
| Feature | Specification |
|---|---|
| Model | ICX8200-48PF2-E2 |
| Ports (Downlink / Access) | 48 × 10/100/1000 Mbps RJ-45 PoE+ ports (Class 4) |
| Ports (Uplink / Stacking) | 4 × 1/10/25 GbE SFP28 ports |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE Power Budget | 740 W (with one PSU) / up to 1440 W (with dual PSUs) |
| Switching Capacity | 336 Gbps |
| Forwarding Capacity | Up to 250 Mpps |
| Layer 3 Features | Static Routing, RIP, OSPF, VRF, Policy-based Routing |
| Advanced Features | VXLAN support, OpenFlow (Hybrid Port Mode), sFlow |
| Redundant Power Supply | Yes, dual hot-swappable PSUs |
| Cooling | Hot-swappable redundant fans |
| Energy Efficient Ethernet | Yes |
| MACsec Support | No |
| BGP Support | No |
| IPsec VPN Support | No |
| Regulatory Compliance | RoHS compliant, meets international safety and EMC standards |
| Management Ports | 1 × RJ-45 out-of-band management1 × RJ-45 console1 × USB Type-C console1 × USB port for file storage |
| Remote Support | 3-year TAC remote support included |
| Form Factor | 1U Rackmount |
| Ideal Use Cases | Enterprise access layer, campus networks, IoT deployments, high-PoE environments (APs, cameras, VoIP phones) |
| Power Cord Included | No |
| condition | new |
|---|
