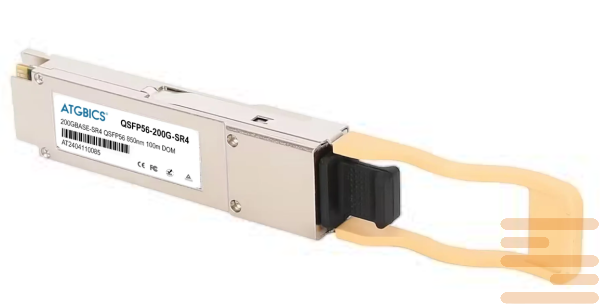

Transceiver Nvidia 980-9I17S-00HS00
The NVIDIA 980-9I17S-00HS00 is a QSFP56 200GBase-SR4 optical transceiver module designed for high-performance InfiniBand HDR and Ethernet networks. It supports a data rate of 200 Gbps over four 50G-PAM4 lanes and utilizes an 850 nm wavelength for transmission over multimode fiber (MMF). The module features an MPO-12 connector and supports distances up to 100 meters on OM4 fiber. It includes Digital Optical Monitoring (DOM) for real-time diagnostics and complies with industry standards such as IEEE 802.3bs and QSFP56 MSA.
Modulation -based equipment 100G-PAM4 Provides transmission of data at speed to 400 GbIT/s and used in InfiniBand networks and Ethernet. Technology PAM4 lets double the data density compared to NRZ, which is critical for modern data centers, high-performance computing, and cloud infrastructures.
The ruler includes transversal and cable assembly of formats QSFP112, OSFP and Twin-port OSFP. Supports active (AOC, ACC) and passive (DAC) cables as well as multimode (MMF) and one -mode (SMF) Optical modules. All devices are certified and meet the standards IEEE 802.3bs and InfiniBand HDR.
Implemented various connection schemes:
- 800G-to-800G - Direct connection of switches;
- 800G-to-2x400G - Connecting modules DPU ConnectX-7 and BlueField-3;
- 800G-to-4x200G - Multiple distribution of traffic.
Modules support digital monitoring DDM: temperature control, voltage, radiation power and reception, laser output current. This provides stability during operation and accelerates diagnostics. Also supported FEC-coding that reduces the possibility of loss and errors in high -frequency transmission conditions.
form factor OSFP designed for effective heat dissipation, which allows the use of DSP high power and achieve steady work at distances up to 2 km (SMF). QSFP112 offers compactness and backward compatibility with previous generations, including channels up to 100 m for OM4.
The operating temperature range is from 0 to +70°C. All devices meet the requirements MSA, which ensures cross-compatibility in network solutions from different manufacturers. Equipment is designed to build scaled, rejection and energy -efficient new generation networks where critical speed, density and reliability of data transmission.
The technical characteristics of an optical module Nvidia 980-9I17S-00HS00:
| Parameter | Specification |
|---|---|
| Product Name | NVIDIA 980-9I17S-00HS00 |
| Form Factor | QSFP56 (Flat Top) |
| Data Rate | 200 Gbps (4×50G-PAM4) |
| Optical Interface | MPO-12 |
| Wavelength | 850 nm |
| Fiber Type | Multimode Fiber (MMF) |
| Maximum Reach | Up to 100 meters (OM4) |
| Modulation | PAM4 |
| Electrical Interface | 4×50G-PAM4 |
| Power Consumption | Up to 4.5 W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to +85°C |
| Hot Pluggable | Yes |
| Laser Safety | Class 1 (IEC 60825-1) |
| Standard Compliance | QSFP56 MSA, CMIS 4.0, IEEE 802.3bs, RoHS |
| FEC Support | Yes |
| DOM Support | Yes (Digital Optical Monitoring) |
| Compatible Systems | DGX-H100, Quantum-2, ConnectX-7, BlueField-3 |
| condition | new |
|---|
