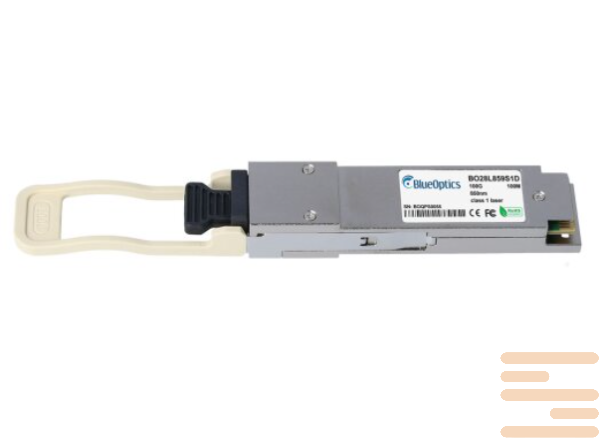

Transceiver Nvidia 980-9I53X-00C000

Modulation -based equipment 100G-PAM4 Provides transmission of data at speed to 400 GbIT/s and used in InfiniBand networks and Ethernet. Technology PAM4 lets double the data density compared to NRZ, which is critical for modern data centers, high-performance computing, and cloud infrastructures.

The ruler includes transversal and cable assembly of formats QSFP112, OSFP and Twin-port OSFP. Supports active (AOC, ACC) and passive (DAC) cables as well as multimode (MMF) and one -mode (SMF) Optical modules. All devices are certified and meet the standards IEEE 802.3bs and InfiniBand HDR.

Implemented various connection schemes:

- 800G-to-800G - Direct connection of switches;

- 800G-to-2x400G - Connecting modules DPU ConnectX-7 and BlueField-3;

- 800G-to-4x200G - Multiple distribution of traffic.

Modules support digital monitoring DDM: temperature control, voltage, radiation power and reception, laser output current. This provides stability during operation and accelerates diagnostics. Also supported FEC-coding that reduces the possibility of loss and errors in high -frequency transmission conditions.

form factor OSFP designed for effective heat dissipation, which allows the use of DSP high power and achieve steady work at distances up to 2 km (SMF). QSFP112 offers compactness and backward compatibility with previous generations, including channels up to 100 m for OM4.

The operating temperature range is from 0 to +70°C. All devices meet the requirements MSA, which ensures cross-compatibility in network solutions from different manufacturers. Equipment is designed to build scaled, rejection and energy -efficient new generation networks where critical speed, density and reliability of data transmission.

The technical characteristics of an optical module Nvidia 980-9I53X-00C000:
